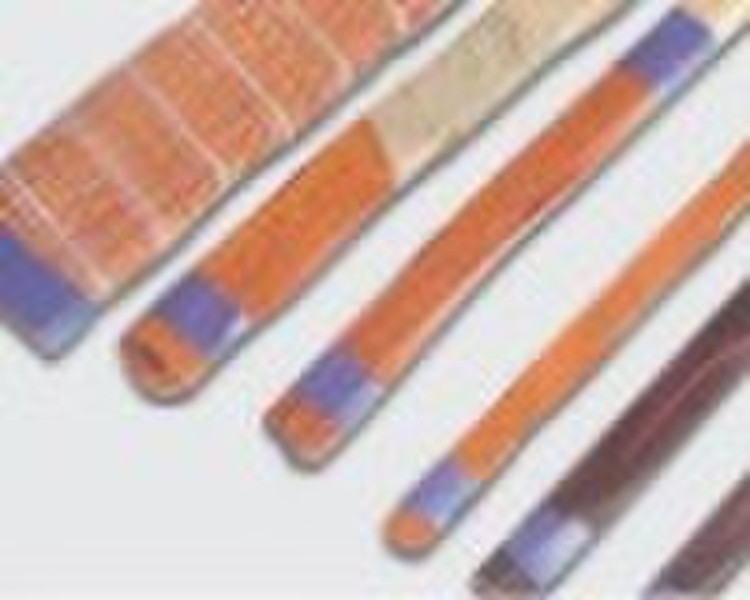

Paper insulation enameled transposed conductor

Paper insulation enameled transposed conductors 1.Product manual: Transposed conduction is an electromagnetic wire with special characters consisting of multiple odd number of enameled rectangular wires arrayed in mutually contacted two rows on wide surface, with transposition in the same direction adopted along the narrow surface of the two rows of the upper and lower enameled wires as required, and use electric engineering insulating paper, string or belt for multiple continual tight wrapping. 2.Product characters: Using transposed conductors for making coil has the following benefits: A: Reduce the transformer’s volume and lower the cost; B: Reduce the lose of the transformer; C: Improve the mechanical strength of the winding and enhance the reliability of the transformer; D:Shorten coil wrapping time and improve working efficiency. 3.Applicable range: This product is suitable for the winding of large sized oil-immersed electrical transformer and reactor. 4.Production range: A: Root number: 5 83 Root(odd number) B: Size of single wire: A: 1.12mm 3.15mm, B: 3.00mm 12.5mm C: Name of single wire: a: Class 120 polyvinyl-acetal enameled flat copper wire; b: Semi-hard status polyvinyl-acetal enameled flat copper wire; c: Heat bonding polyvinyl-acetal enameled flat copper wire; d:Semi-hard heat bonding polyvinyl-acetal enameled flat copper wire; e:Class 180 polyester-imine enameled flat copper wire. 5:Insulation thickness: Maximum one time wrapping 24layers 3.60mm A: Wrapping insulation material: a: High density insulating paper; b:500KV transformer turn-to-turn insulating paper; c: Cable paper d: Heat resisting paper; e: 22HCC Dennison paper; f: Insulating paper with self-bonding layer; g: NOMEX-T410 model insulating paper; 6: Maximum height of transposed conductor (excluding insulating paper) -80mm 7:Maximum width of transposed conductor (excluding insulating paper) -28mm 8:The ratio of Height and width is H/W ≤6 9:Product Type and execution standards: ModelProduct nameExecution standardsHZ XXPaper insulation XX enameled transposed conductorsJB/T6758.1-4-2007HZ XX NSelf-bonding paper insulation XX enameled transposed conductorsHZ XX YNSemi-hard self-bonding paper insulation XX enameled transposed conductors 10 Contact information: Fel : 86-514-88987799 Fax: 86-514-88985288 Homepage: www.jsbjl.com
